Interactive Intelligent Panel

Present | Collaborate | Share

Smart touch
technology

In-built digital
whiteboard

Easy
annotation

10-point
multi-touch display

Seamless
collaboration

Resolution

Turn your meetings into creative brainstorms and inspiring collaborations. Cloud Touch, an interactive presentation solution is designed for boardroom meetings, conferences, education and trainings to keep pace with your ideas and have engaging conversations. Its smart touch technology makes it the intelligent addition every meeting room needs for seamless collaboration. Just find your space and express yourself.

ANNOTATE FLAWLESSLY

The in-built digital whiteboard in Cloud Touch provides you with a plethora of tools to annotate efficiently over any media and interact smoothly during meetings or presentations.

Pen
Tool

Erase
Tool

Object
Tool

Undo
Redo

Zoom
In/Out

Add
Pages

Save

Settings

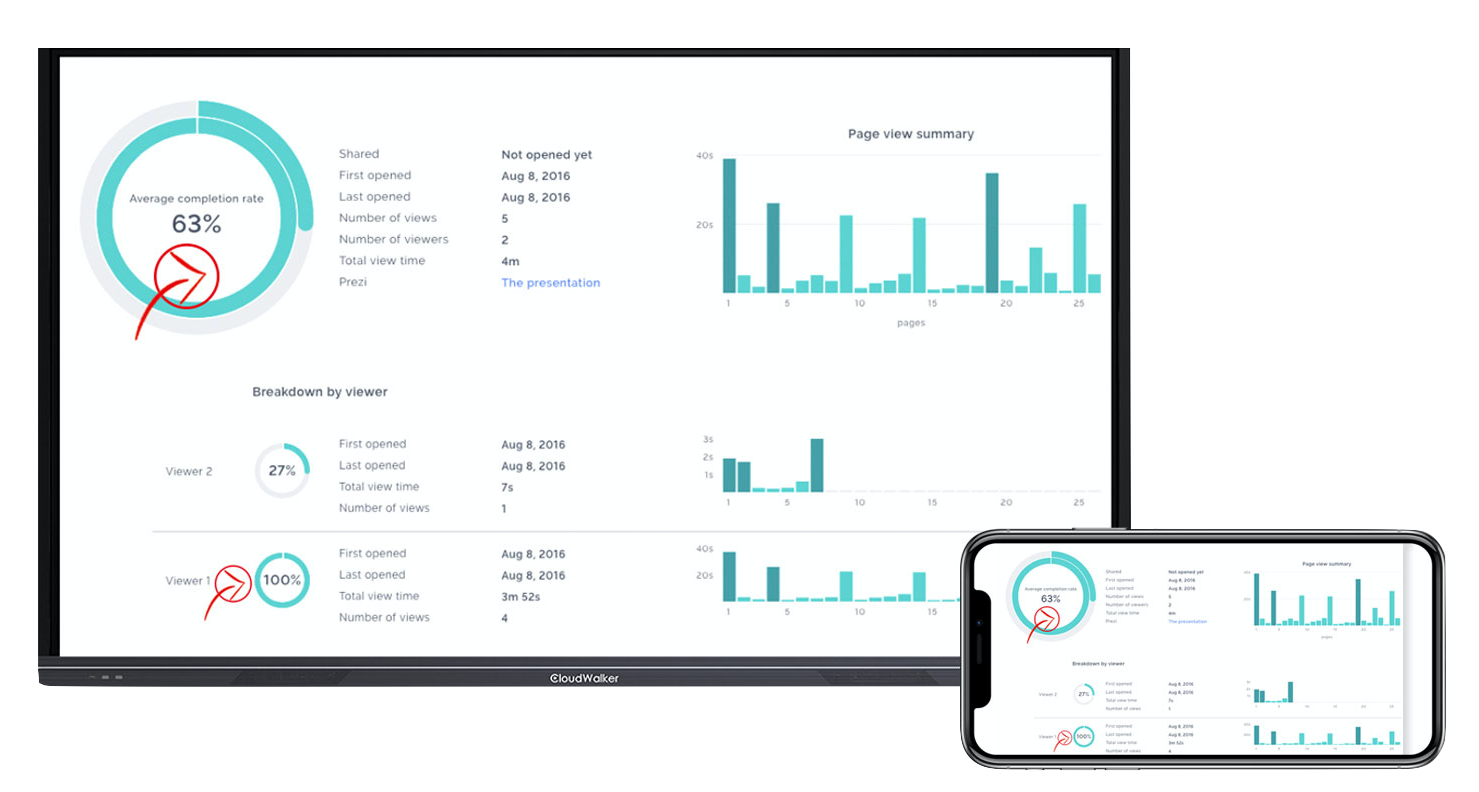

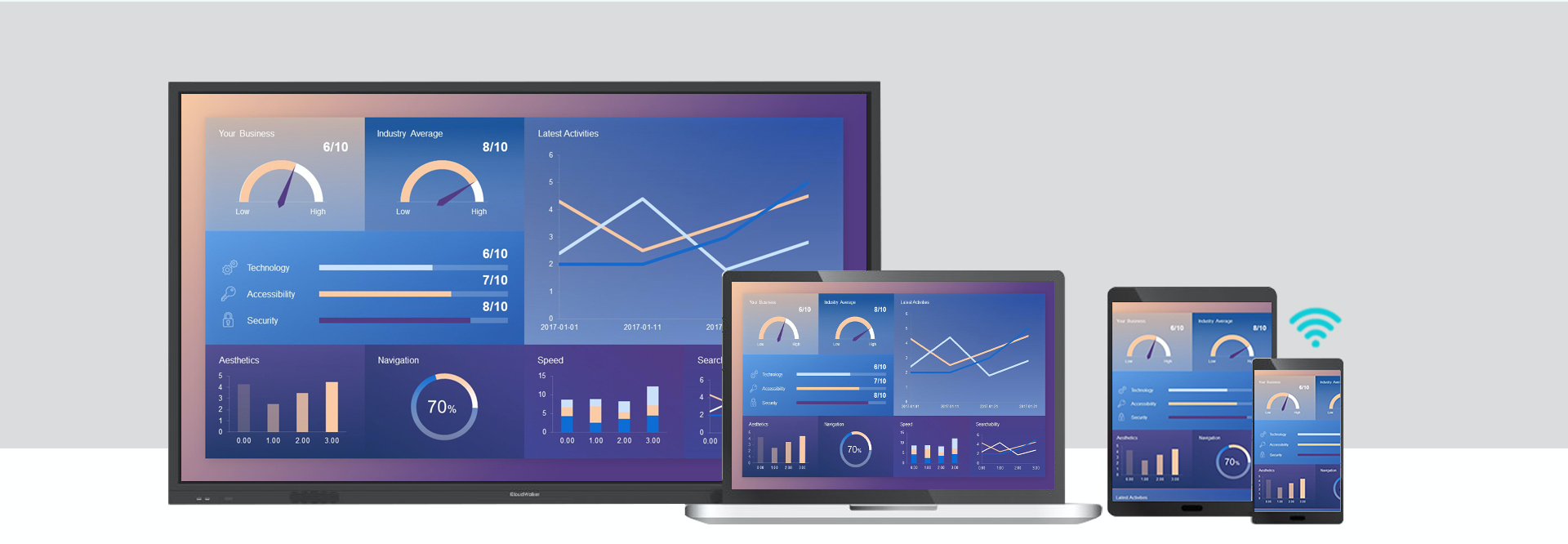

WIRELESS & SEAMLESS COLLABORATION

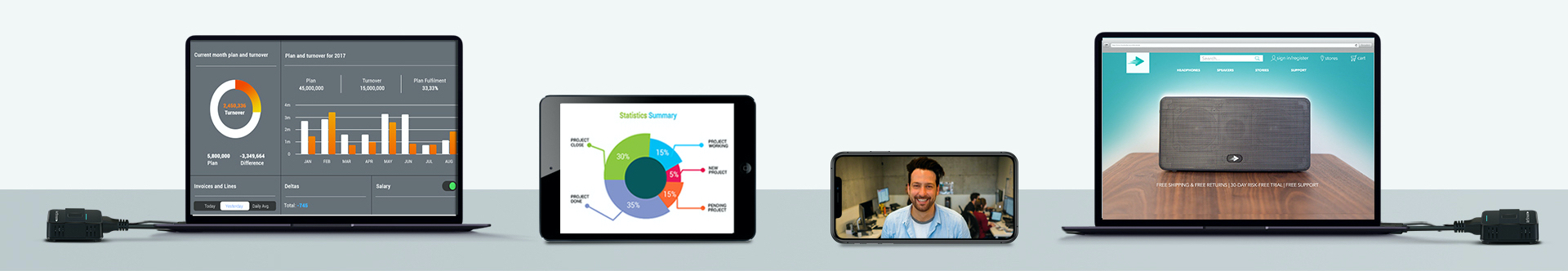

Laptop | Tablet | Smartphone

Go wireless and seamlessly collborate across devices. Instantly connect your laptop, tablet or smartphone to the Cloud Touch via the AirStream app and share your ideas.

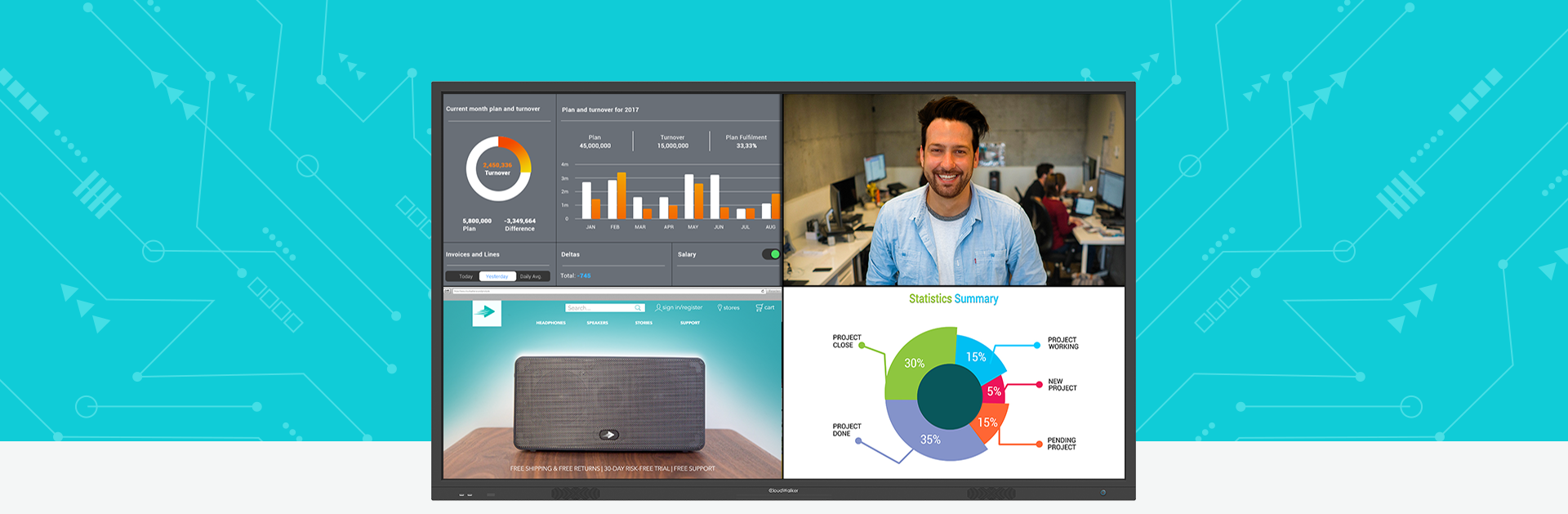

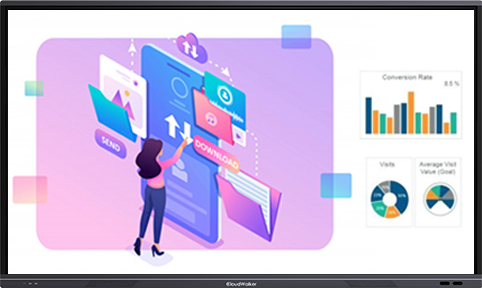

SEAMLESS CONTENT INTERACTION

Annotate and work on presentations from your laptop directly on Cloud Touch. Control your presentations, documents or any applications wirelessly, without having to go to your laptop and control any content on the screen.

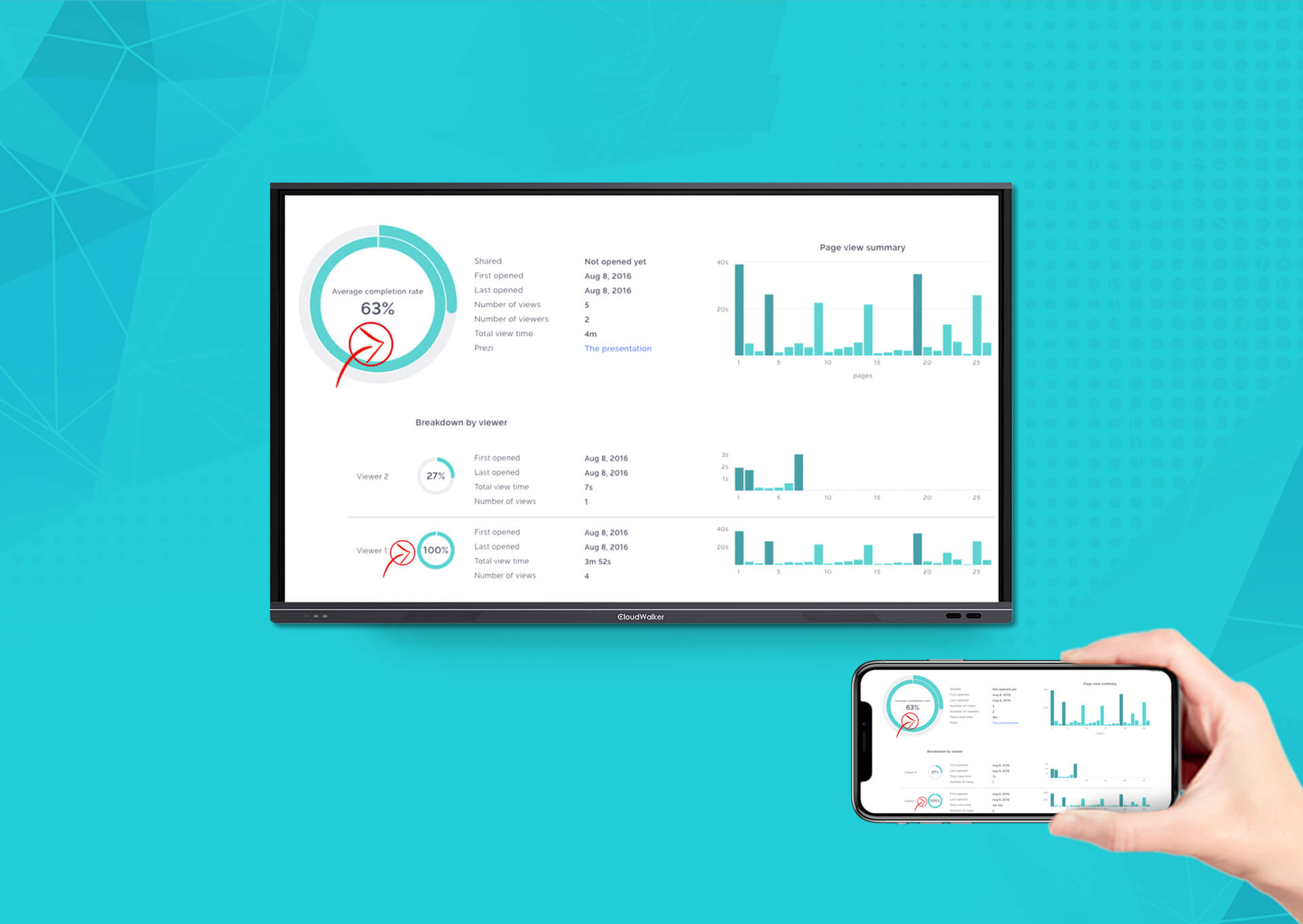

WIRELESS CONTROL FROM MOBILE

  • Access Cloud Touch directly from phone and annotate over presentations, documents or any other screen
  • Access & control apps on Cloud Touch directly from phone
  • Share images, videos and audio on Cloud Touch from phone for seamless collaboration

WIRELESS CONTROL FROM MOBILE

  • Access Cloud Touch directly from phone and annotate over presentations, documents or any other screen
  • Access & control apps on Cloud Touch directly from phone
  • Share images, videos and audio on Cloud Touch from phone for seamless collaboration

Security & Control

Secure presentations with a code

Prevent unwanted connections & casting during ongoing meetings with unique session codes.

Wireless control over network

Wirelessly access and edit your files from any device from the server over the same network.

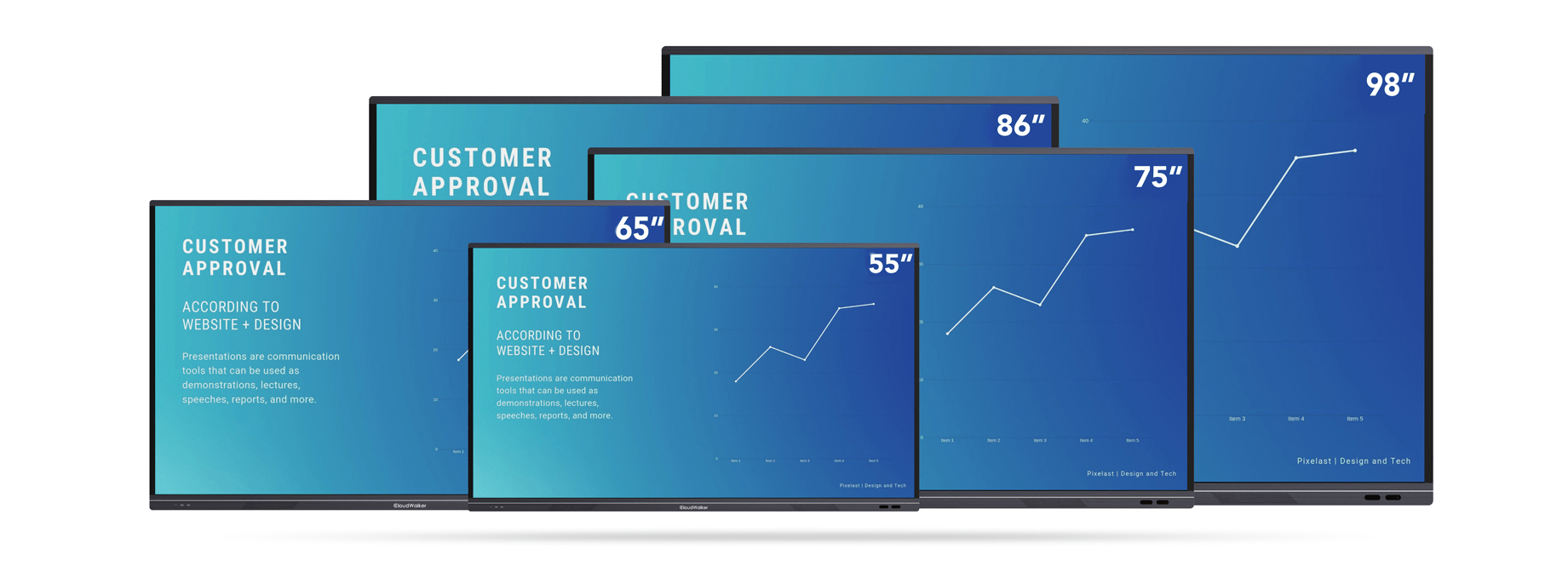

Choose the right size

Multi-OS compatibility

ADDITIONAL FEATURES

10-point
touch display

Output

Android OS

Powerful CPU

Built-in screen mirroring software

Finger Touch

Whiteboard pen

Built-in 20W front facing speakers

Toughened anti-glare glass

Multiple connectivity ports

SPECIFICATIONS

MODEL NO Cloud Touch 55 Cloud Touch 65 Cloud Touch 75 Cloud Touch 86 Cloud Touch 98
CPU Quad core, ARM
Cortex A53, 1.4GHz
Quad core, ARM
Cortex A53, 1.5GHz
Quad core, ARM
Cortex A53, 1.5GHz
Quad core, ARM
Cortex A53, 1.4GHz
Quad core, ARM
Cortex A53, 1.4GHz
GPU Mali 450MP4(4+2) Mali 450MP4(4+2) Mali 450MP4(4+2) Mali 450 Mali 450
RAM/ROM 2GB DDR3/8GB 2GB DDR3/8GB 2GB DDR3/8GB 2GB DDR3/8GB 2GB DDR3/8GB
Operating System Android 5.0 Android 5.0 Android 5.0 Android 5.0 Android 5.0
Screen Mirroring YES YES YES YES YES
Sharing Software CShare Pro CShare Pro CShare Pro CShare Pro CShare Pro
Touch Technology Infrared Infrared Infrared Infrared Infrared
Board Aspect Ratio 16:9 16:9 16:9 16:9 16:9
Viewing Angle 178[H/V] 178[H/V] 178[H/V] 178[H/V] 178[H/V]
Operating System
Compatability
Windows, Linux, macOS, iOS, Android
DISPLAY SIZE 139 cm 165 cm 190 cm 218 cm 249 cm
RESOLUTION 3840 x 2160 3840 x 2160 3840 x 2160 3840 x 2160 3840 x 2160
Response Time 6ms (typ.) 6ms (typ.) 8ms (typ.) 8ms (typ.) 5ms (typ.)
Surface Protection
4mm Toughened Anti-glare Glass with Level 7 of Mohs Standard
Number Of Touch Points 10 10 10 10 10
Ports
HDMI, AV IN/OUT, USB, VGA, SPDIF
Speaker 10W*2 10W*2 10W*2 10W*2 10W*2
Whiteboard Pen 2 2 2 2 2
Remote Control 1 1 1 1 1
Wall Mount Bracket Yes Yes Yes Yes Yes
Power Supply (AC) 100V - 240V 100V - 240V 100V - 240V 100V - 240V 100V - 240V
Power Consumption <140W <230W <460W <440W <480W
PRODUCT DIMENSIONS
(W x D x H) IN MM
1299 X 104 X 811 1510.5 x 122 X 926.6 1736.8 x 111 X 1055.4 1998 X 152 X 1209 2242 x 116 X 1338
Net Weight (Kg) 36.75 (+/- 1.5 Kg) 52.95 (+/- 1.5 Kg) 63 (+/- 1.5 Kg) 84.25 (+/- 1.5 Kg) 139.43 (+/- 1.5 Kg)
Gross Weight(kg) 44.54 (+/- 1.5 Kg) 66.45 (+/- 1.5 Kg) 80.2 (+/- 1.5 Kg) 111.85 (+/- 1.5 Kg) 192.65 (+/- 1.5 Kg)
USER MANUALS

BOOK A FREE DEMO

Please fill in your details & our sales representative will contact you shortly

Your message has been sent. Thank you!

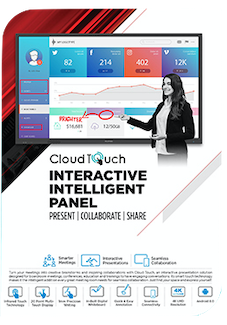

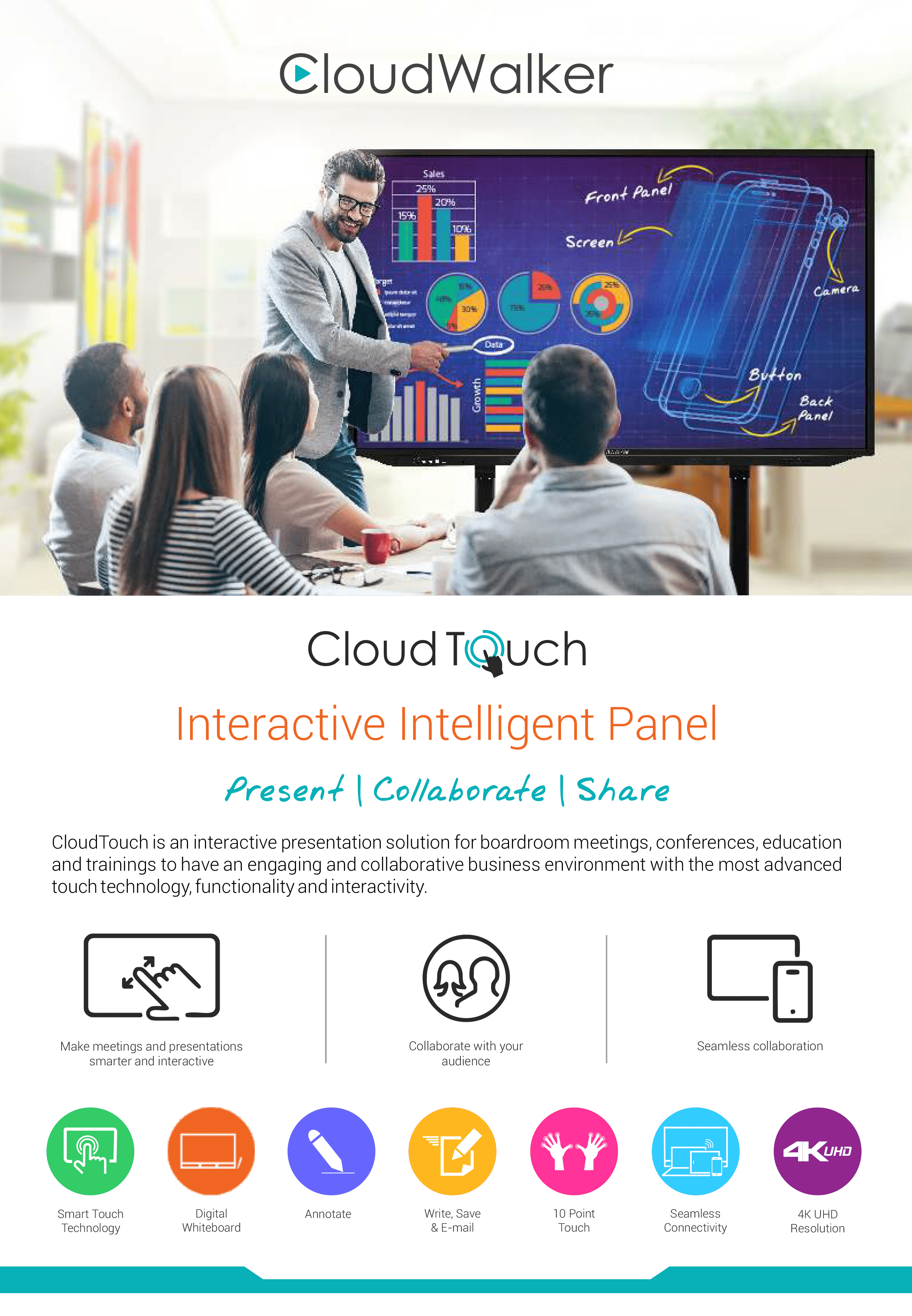

PRODUCT BROCHURE
